Control Room Console Design Case 5
Components of the Console
Our control console offers versatile features like monitor arms, telephone brackets, keyboard trays, file cabinets, and ergonomic chairs. Enhanced with ergonomic and smart modules, it meets the diverse needs of government and corporate users. It supports a wide range of wireless, wired, and desktop communication services.
Technical Performance

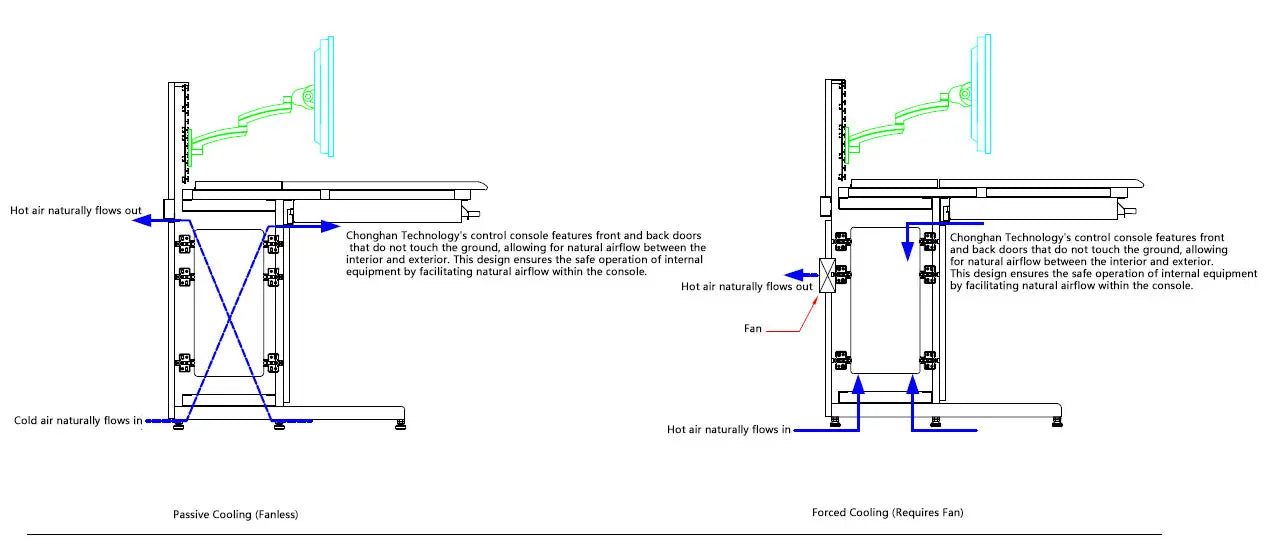

Cooling System
The console’s innovative ventilation design ensures optimal airflow without relying on built-in cooling fans. Cold air enters from the front, back, and bottom, circulates inside, and exits from the top, maintaining equipment safety and efficiency. Ventilation holes (30% opening rate) on the front and back doors enhance airflow, while heated air is directed away from operators for a healthier work environment.

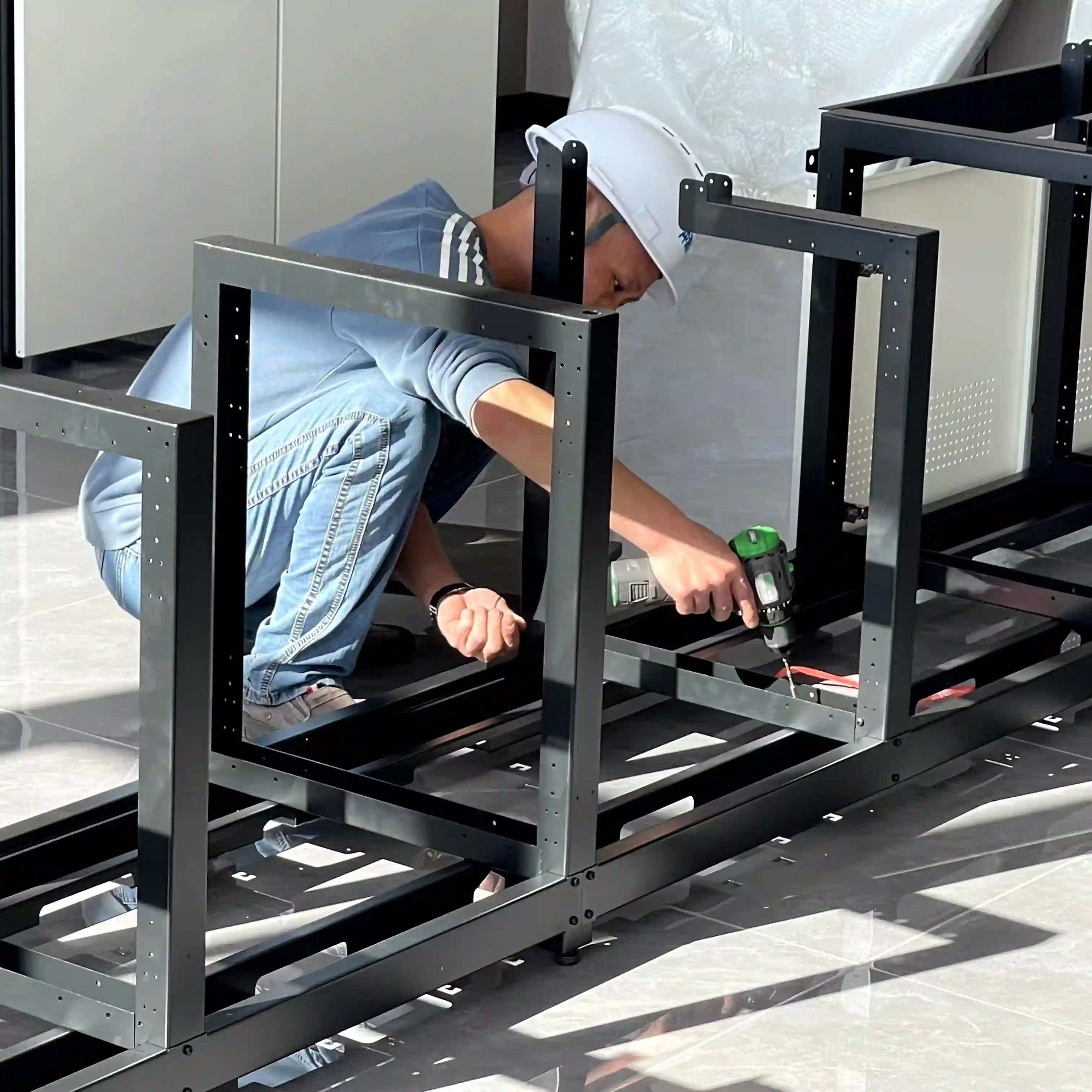

Sturdy Structure
Built with premium cold-rolled steel, the console features reinforced columns and thickened beams (3mm load-bearing thickness), ensuring durability and resistance to deformation. Its spacious interior accommodates various equipment setups with ease.
Easy Maintenance
The console’s modular design allows for quick disassembly and reassembly, making maintenance simple and efficient.

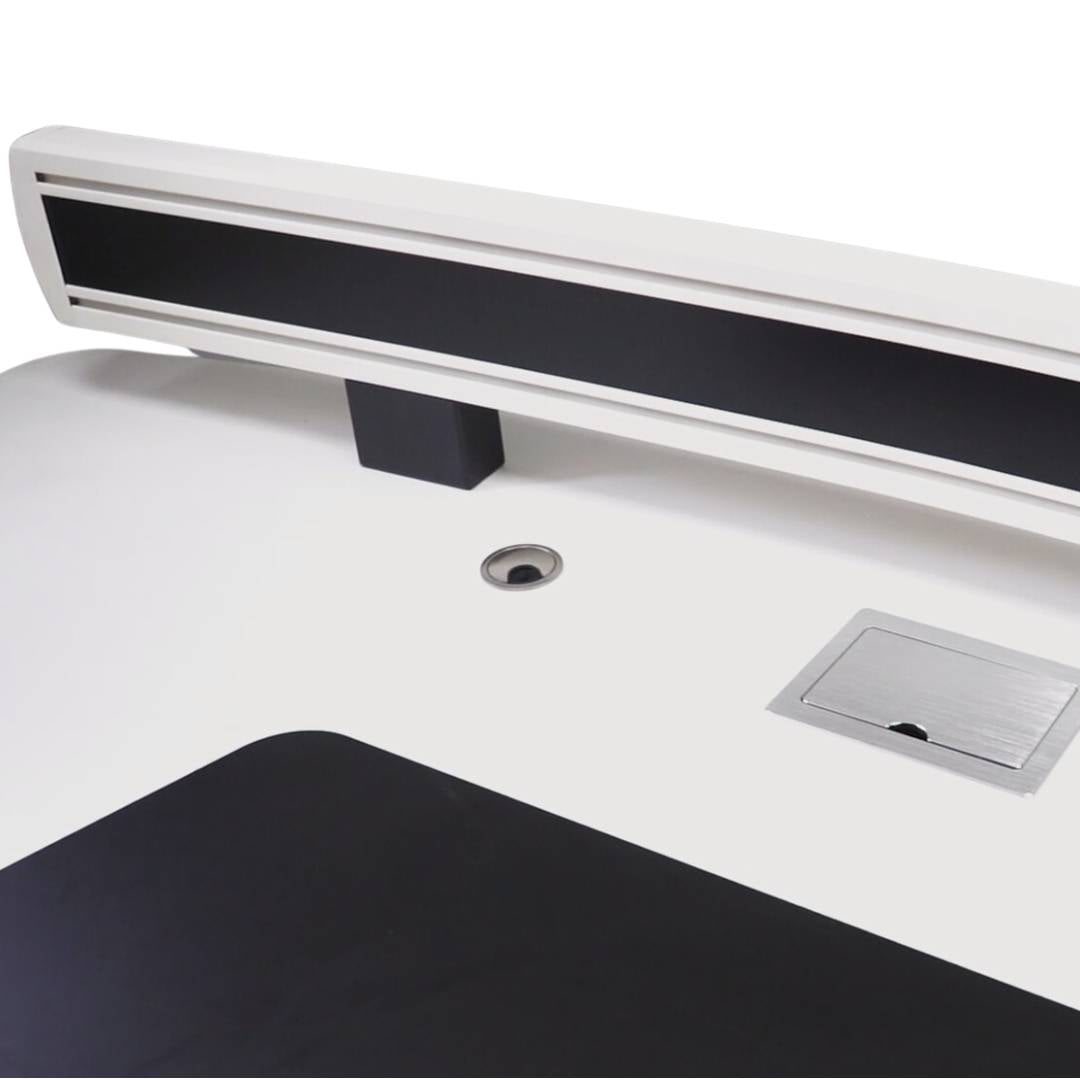

Control Console Panel
Durable Material
The tabletop is crafted from 15-26.8mm Vicwin Asia fireproof board, offering water, fire, and heat resistance. Custom colors are available, and the material meets stringent flame-retardant and environmental standards.
Ergonomic DesignErgonomic Design
The edge features flexible polyurethane molding for a seamless finish and enhanced comfort, adhering to national formaldehyde emission limits.
Front and Back Doors
Ventilated Design
Ventilation holes with a 30% opening rate ensure effective heat dissipation and maintain stable operation.
High-Quality Materials
The doors are made of cold-rolled steel with a corrosion-resistant coating or Vicwin Asia fireproof board, ensuring durability and eco-friendliness.
Additional Features

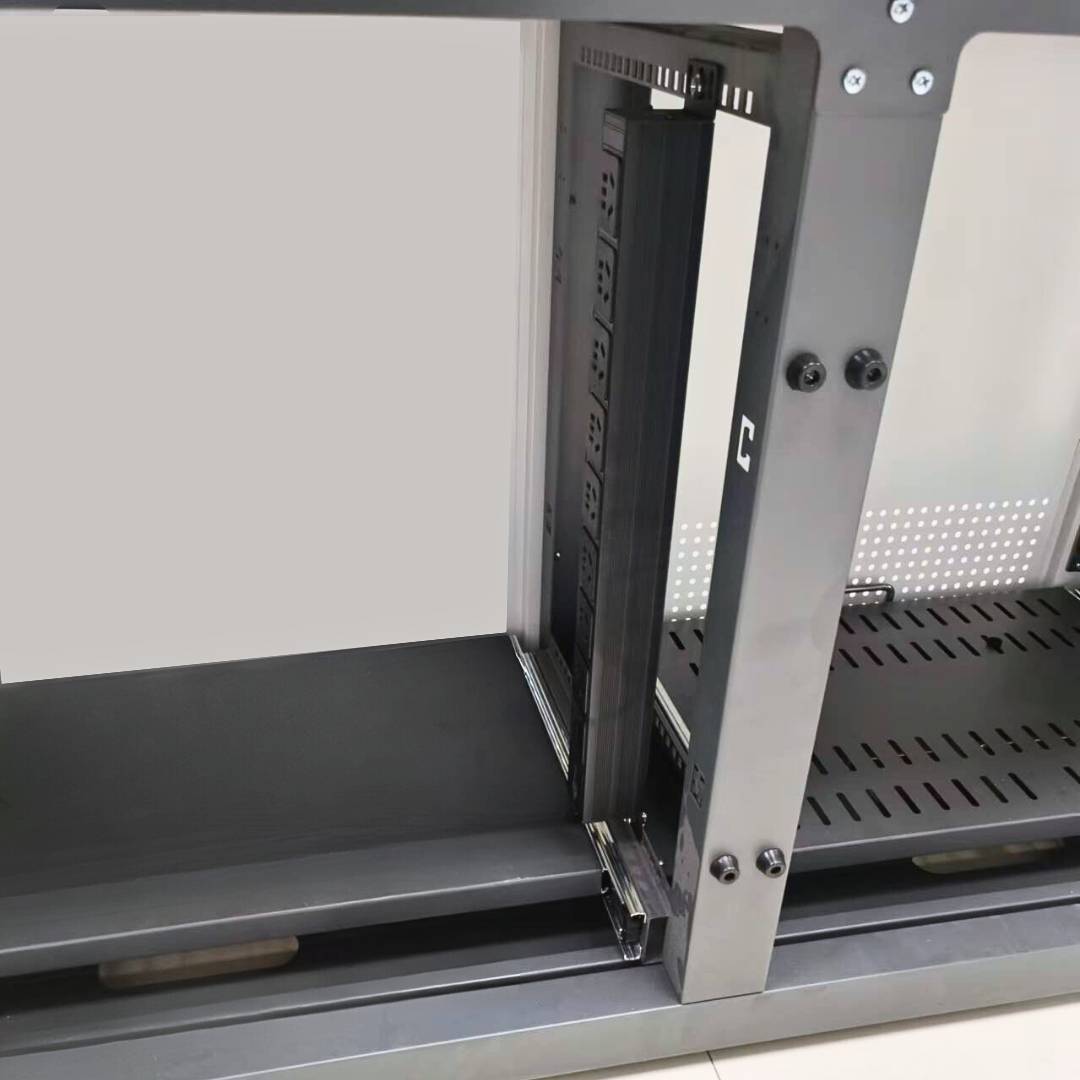

19-inch Mainframe Tray
Simplifies equipment installation and organization.

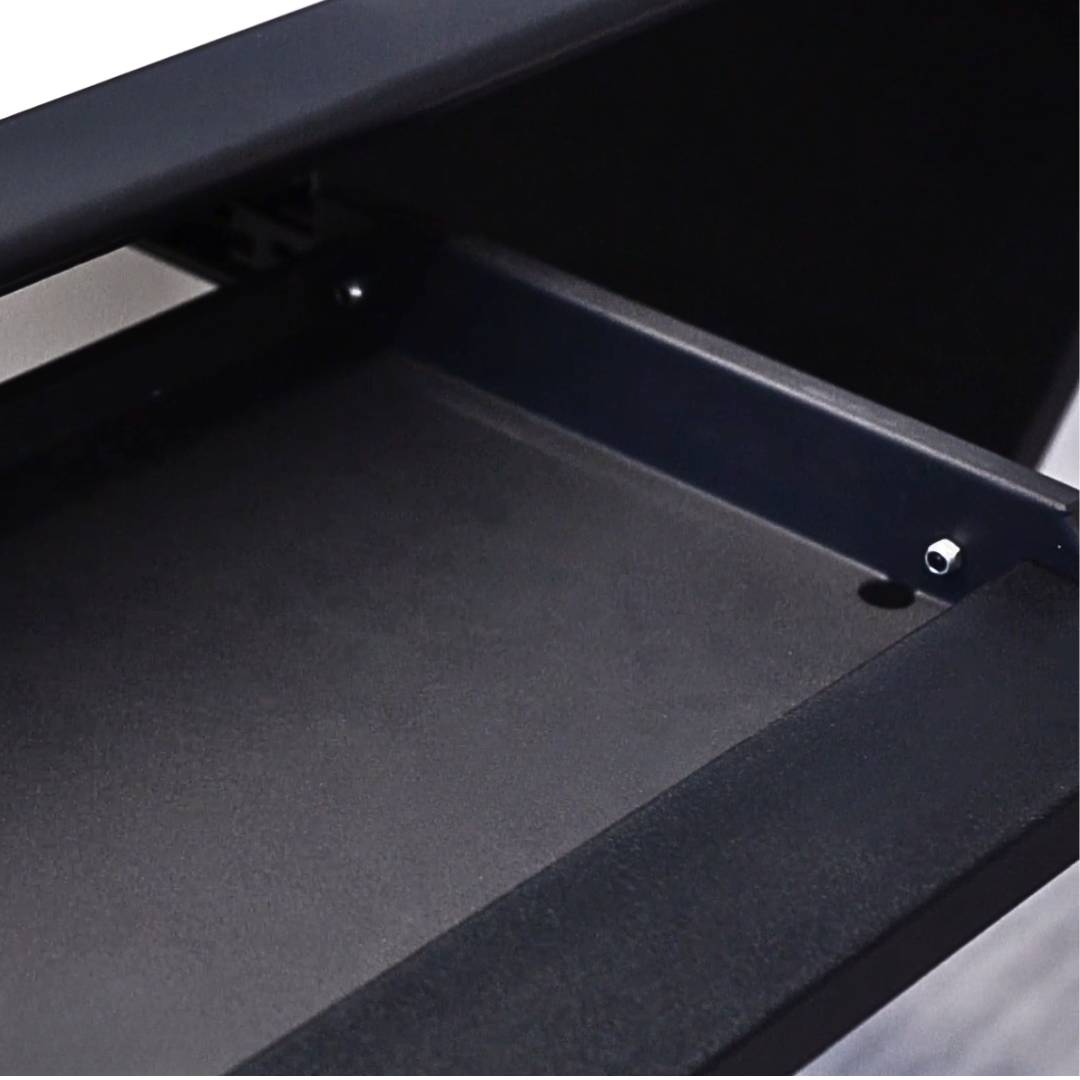

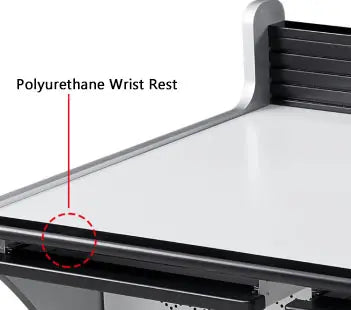

Silent Keyboard Tray
Equipped with a durable polyurethane wrist rest and smooth sliding rails for comfort.
Aluminum Screen Divider
Made from robust aluminum alloy with integrated grooves for monitor support arms.
